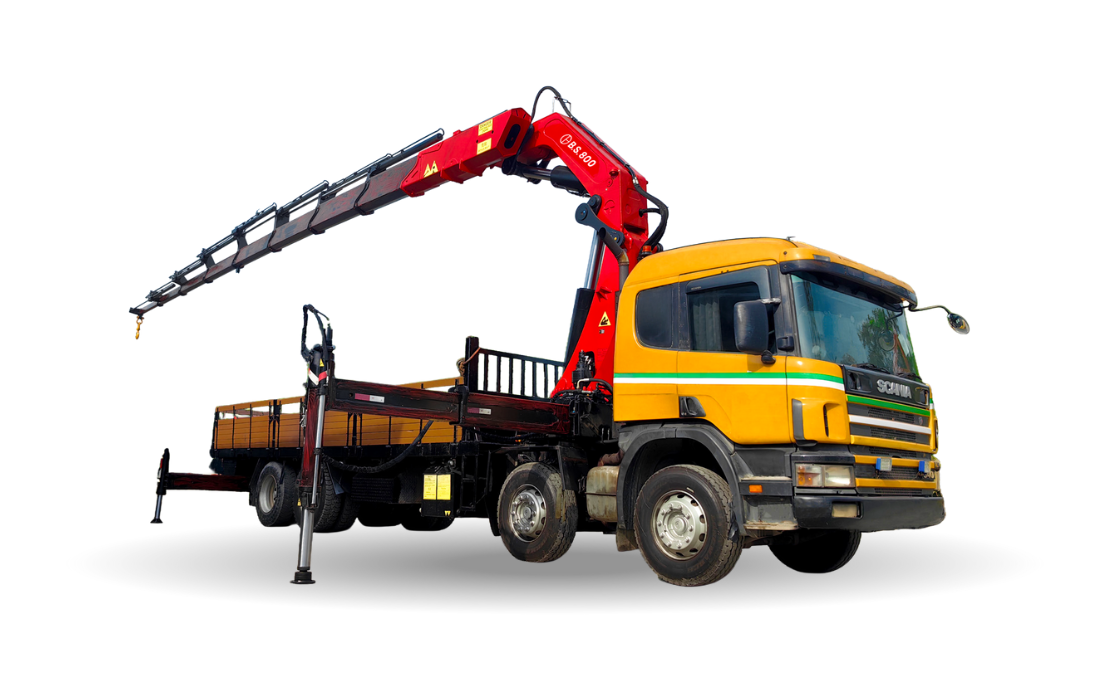

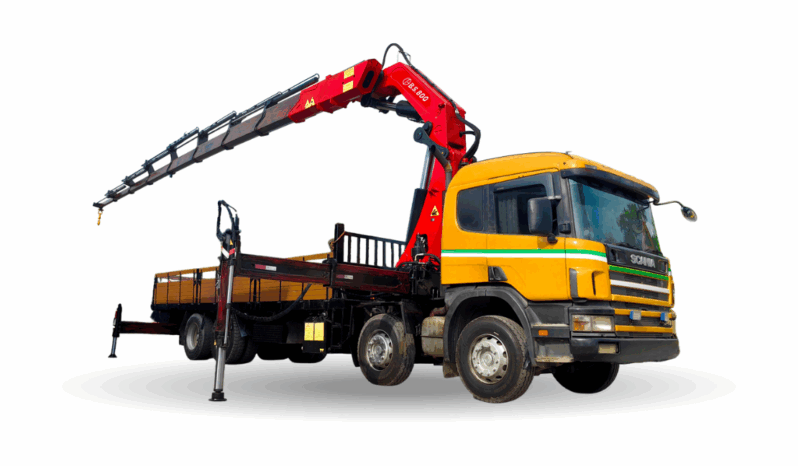

BS 800

Crane design compliance to European Standard EN12999
Directional Control Valve ensures precise and efficient crane operation
Double Section Stabilizer provides wider support for safer and steadier lifting
Endless Rotation offers unrestricted 360° movement for maximum flexibility
High Pressure Oil Filter keeps hydraulics clean for peak performance and durability
High Speed Boom Extension enables faster outreach for maximum efficiency
Load Limiting Valve protects against overloads for safer and more reliable lifting
Sequence Boom Extensions ensure smooth and automatic boom outreach for efficient lifting
Single Power Linkage delivers stronger lifting force with precise control

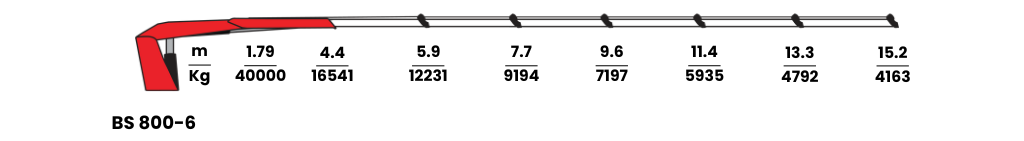

BS 800-6

Lifting Capacity (tm) 74	Outreach (m) 15.2	Slewing Angle (°) ∞	Stabilizer Spread (mm) 8300
Working Pressure (bar) 330	Pump Capacity (cc/r) 40~80	Oil Tank Capacity (L) 260	Crane Weight with Stabilizer (kg) 8300 ± 5%

Lifting Capacity (tm) 73	Outreach (m) 17.1	Slewing Angle (°) ∞	Stabilizer Spread (mm) 8300
Working Pressure (bar) 330	Pump Capacity (cc/r) 40~80	Oil Tank Capacity (L) 260	Crane Weight with Stabilizer (kg) 8535 ± 5%

Lifting Capacity (tm) 72	Outreach (m) 19.1	Slewing Angle (°) ∞	Stabilizer Spread (mm) 8300
Working Pressure (bar) 330	Pump Capacity (cc/r) 40~80	Oil Tank Capacity (L) 260	Crane Weight with Stabilizer (kg) 8700 ± 5%
