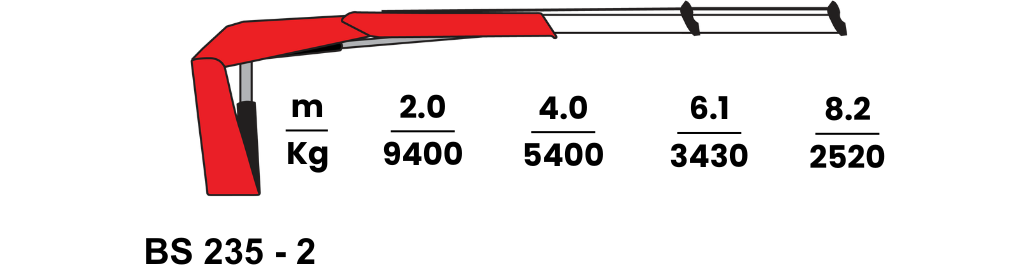

BS 235-2
|
Lifting Capacity (tm)
21.6
|
Outreach (m)
8.2
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
130
|
Crane Weight with Stabilizer (kg)
3230 ± 5%
|

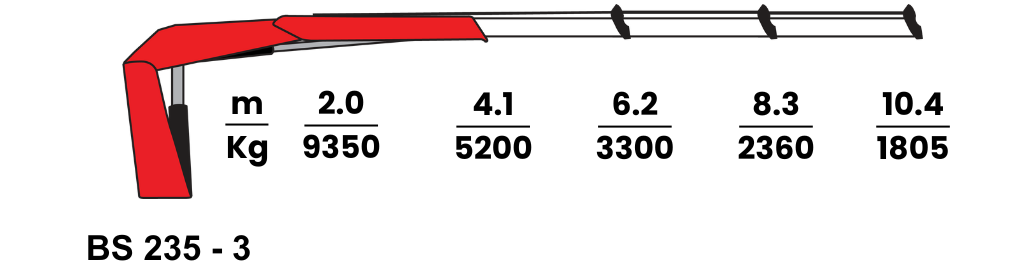

BS 235-3
|
Lifting Capacity (tm)
21.0
|
Outreach (m)
10.4
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
130
|
Crane Weight with Stabilizer (kg)
3330 ± 5%
|

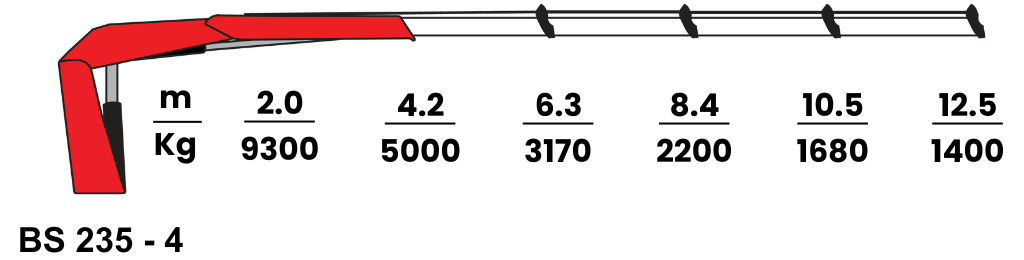

BS 235-4
|
Lifting Capacity (tm)
20.0
|
Outreach (m)
12.5
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
130
|
Crane Weight with Stabilizer (kg)
3430 ± 5%
|
