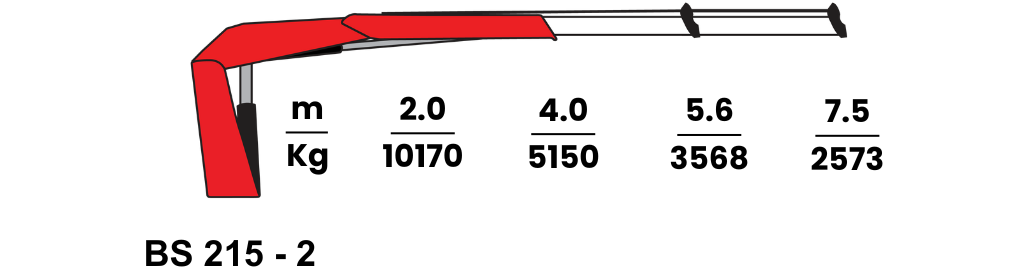

BS 215-2
|
Lifting Capacity (tm)
19.5
|
Outreach (m)
7.5
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~100
|
Oil Tank Capacity (L)
130
|
Crane Weight with Stabilizer (kg)
2965 ± 5%
|

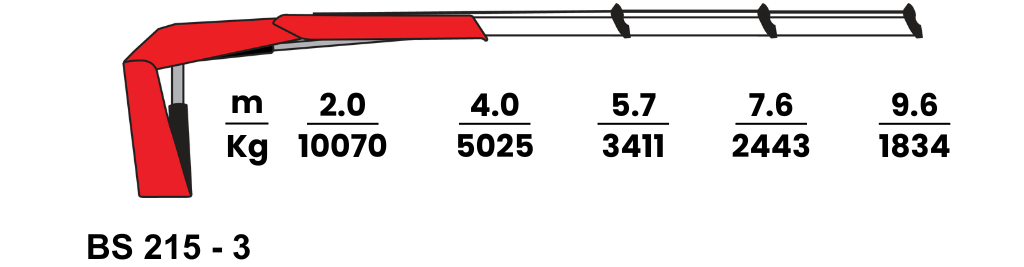

BS 215-3
|
Lifting Capacity (tm)
19.2
|
Outreach (m)
9.6
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
4215
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
40~100
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
3065 ± 5%
|

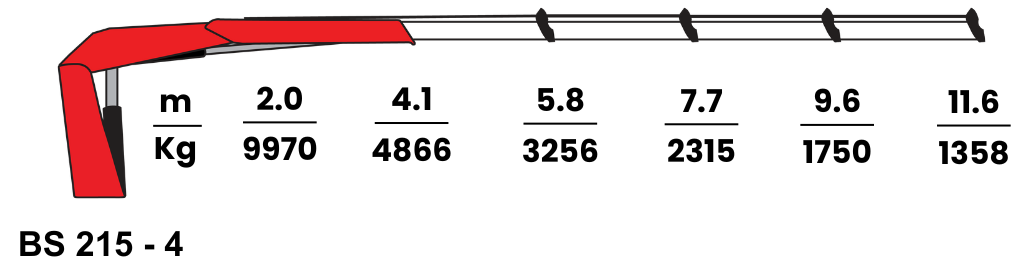

BS 215-4
|
Lifting Capacity (tm)
19.0
|
Outreach (m)
11.6
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
4215
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
40~100
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
3165 ± 5%
|
