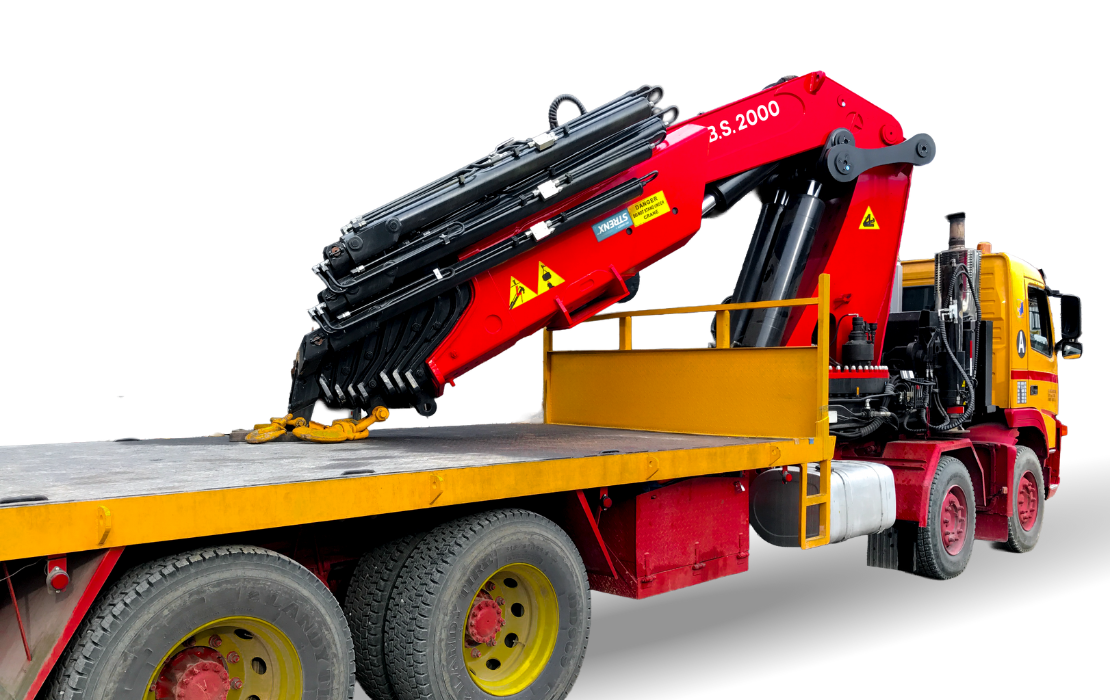

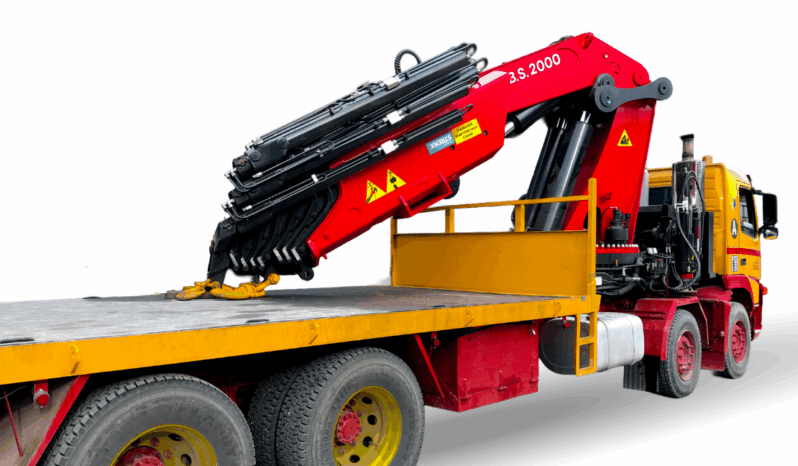

BS 2000

Triple Section Stabilizer delivers extra-wide support for superior stability and safety
Crane design compliance to European Standard EN12999
Directional Control Valve ensures precise and efficient crane operation
Dual Power Linkage delivers higher lifting capacity with optimal control
Endless Rotation offers unrestricted 360° movement for maximum flexibility
High Pressure Oil Filter keeps hydraulics clean for peak performance and durability
High Speed Boom Extension enables faster outreach for maximum efficiency
Load Limiting Valve protects against overloads for safer and more reliable lifting
Sequence Boom Extensions ensure smooth and automatic boom outreach for efficient lifting

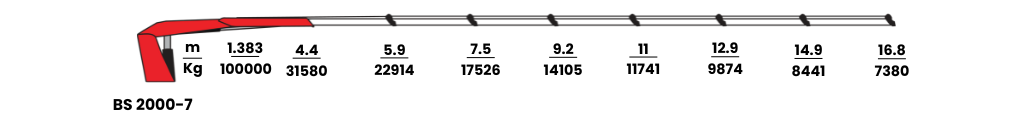

BS 2000-7

Lifting Capacity (tm) 141	Outreach (m) 16.8	Slewing Angle (°) ∞	Stabilizer Spread (mm) 10400
Working Pressure (bar) 340	Pump Capacity (cc/r) 60~100	Oil Tank Capacity (L) 650	Crane Weight with Stabilizer (kg) 19880 ± 5%

Lifting Capacity (tm) 140	Outreach (m) 18.9	Slewing Angle (°) ∞	Stabilizer Spread (mm) 10400
Working Pressure (bar) 340	Pump Capacity (cc/r) 60~100	Oil Tank Capacity (L) 650	Crane Weight with Stabilizer (kg) 20200 ± 5%

Lifting Capacity (tm) 139	Outreach (m) 21	Slewing Angle (°) ∞	Stabilizer Spread (mm) 10400
Working Pressure (bar) 340	Pump Capacity (cc/r) 60~100	Oil Tank Capacity (L) 650	Crane Weight with Stabilizer (kg) 20485 ± 5%
