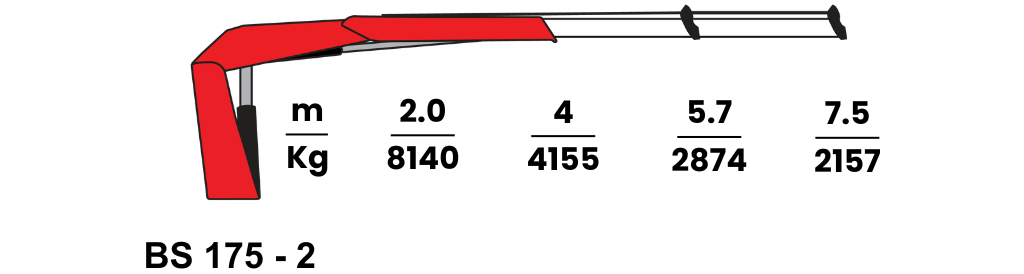

BS 175-2
|
Lifting Capacity (tm)
16.4
|
Outreach (m)
7.5
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
100
|
Crane Weight with Stabilizer (kg)
2565 ± 5%
|

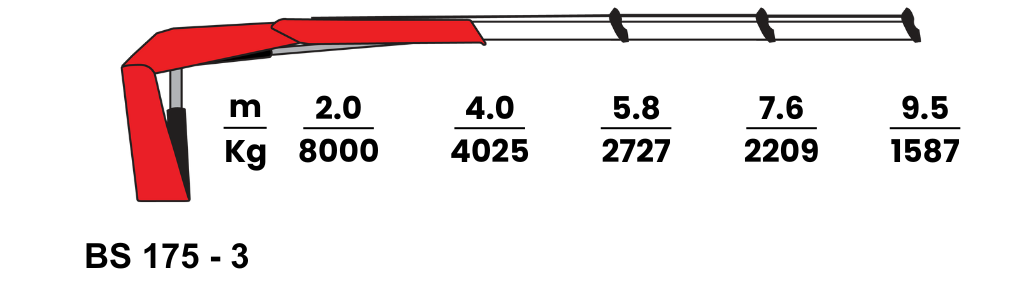

BS 175-3
|
Lifting Capacity (tm)
16.2
|
Outreach (m)
9.5
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
100
|
Crane Weight with Stabilizer (kg)
2715 ± 5%
|

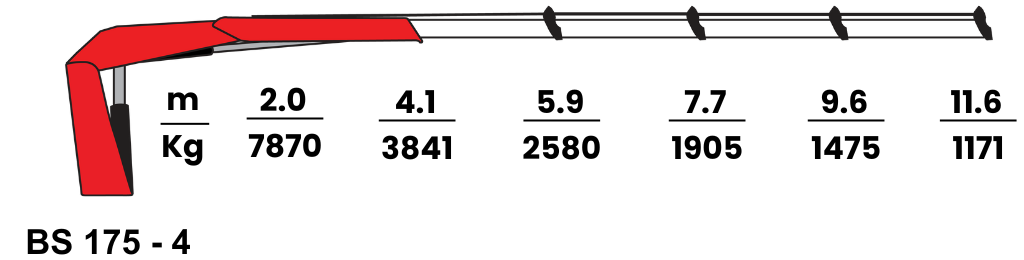

BS 175-4
|
Lifting Capacity (tm)
16.0
|
Outreach (m)
11.6
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5250
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
100
|
Crane Weight with Stabilizer (kg)
2865 ± 5%
|
