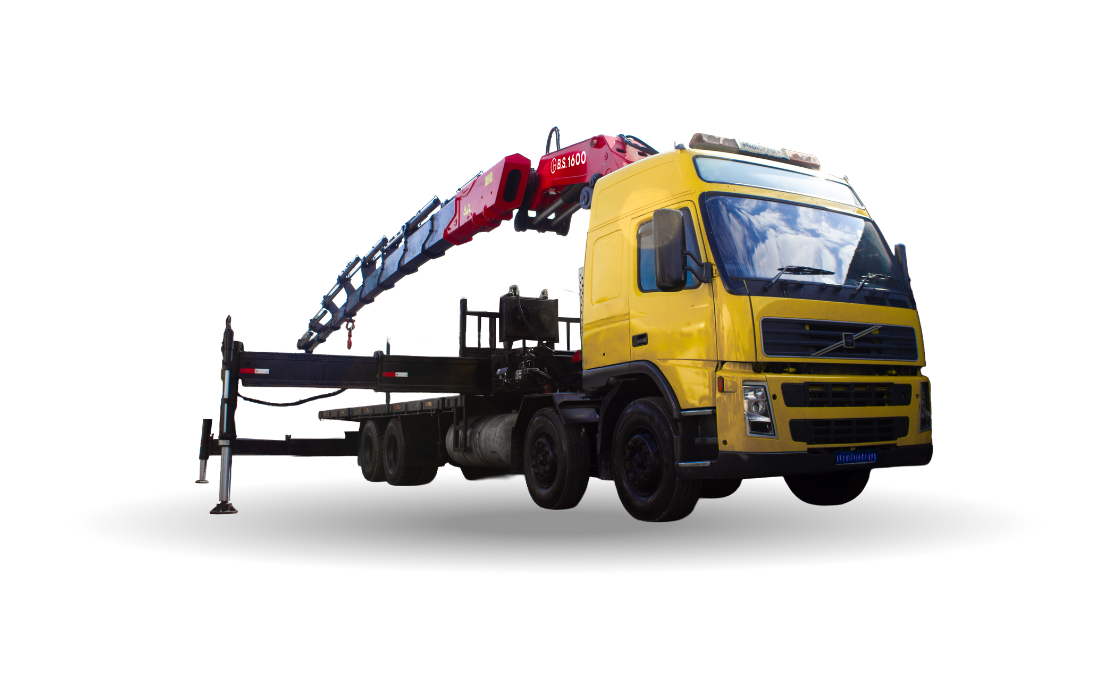

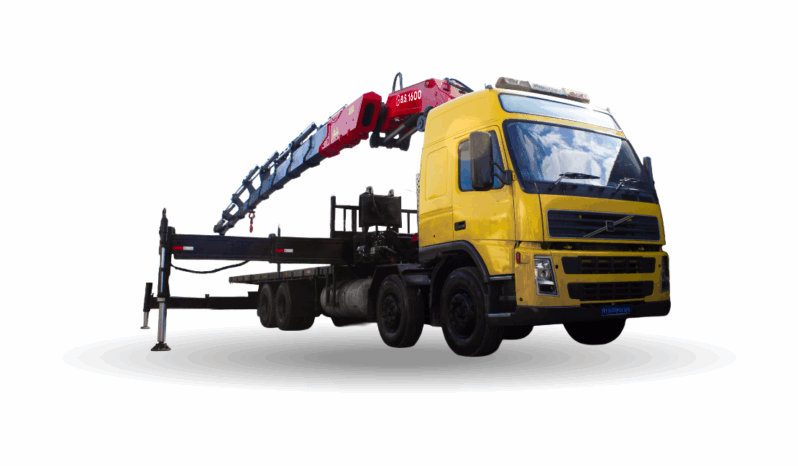

BS 1600

Crane design compliance to European Standard EN12999
Directional Control Valve ensures precise and efficient crane operation
Double Section Stabilizer provides wider support for safer and steadier lifting
Dual Power Linkage delivers higher lifting capacity with optimal control
Endless Rotation offers unrestricted 360° movement for maximum flexibility
High Pressure Oil Filter keeps hydraulics clean for peak performance and durability
High Speed Boom Extension enables faster outreach for maximum efficiency
Load Limiting Valve protects against overloads for safer and more reliable lifting
Sequence Boom Extensions ensure smooth and automatic boom outreach for efficient lifting

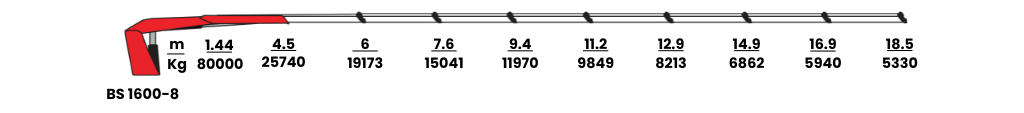

BS 1600-8

Lifting Capacity (tm) 119	Outreach (m) 16.8	Slewing Angle (°) ∞	Stabilizer Spread (mm) 8350
Working Pressure (bar) 340	Pump Capacity (cc/r) 60~100	Oil Tank Capacity (L) 500	Crane Weight with Stabilizer (kg) 15250 ± 5%

Lifting Capacity (tm) 118	Outreach (m) 18.8	Slewing Angle (°) ∞	Stabilizer Spread (mm) 8350
Working Pressure (bar) 340	Pump Capacity (cc/r) 60~100	Oil Tank Capacity (L) 500	Crane Weight with Stabilizer (kg) 15500 ± 5%

Lifting Capacity (tm) 117	Outreach (m) 20.8	Slewing Angle (°) ∞	Stabilizer Spread (mm) 8350
Working Pressure (bar) 340	Pump Capacity (cc/r) 60~100	Oil Tank Capacity (L) 500	Crane Weight with Stabilizer (kg) 15700 ± 5%
