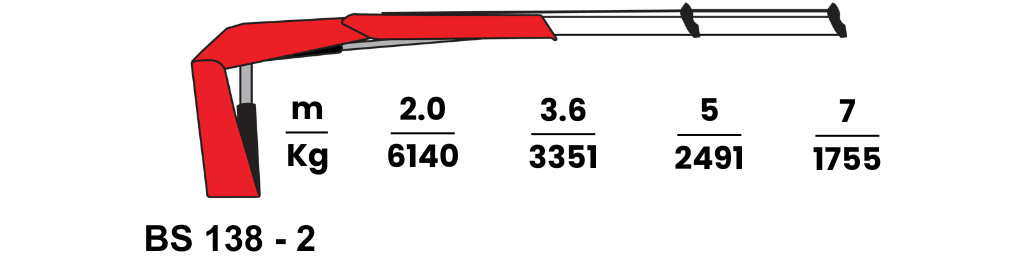

BS 138-2
|
Lifting Capacity (tm)
12.7
|
Outreach (m)
7
|
Slewing Angle (°)
∞
|
Stabilizer Spread (mm)
5380
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
80
|
Crane Weight with Stabilizer (kg)
2420 ± 5%
|

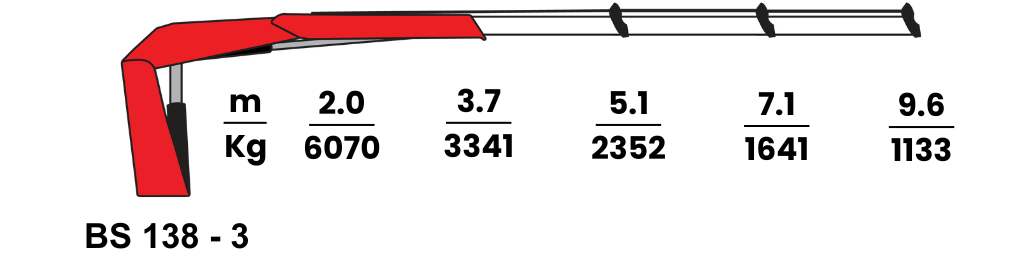

BS 138-3
|
Lifting Capacity (tm)
12.5
|
Outreach (m)
9.6
|
Slewing Angle (°)
∞
|
Stabilizer Spread (mm)
5380
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
80
|
Crane Weight with Stabilizer (kg)
2540 ± 5%
|

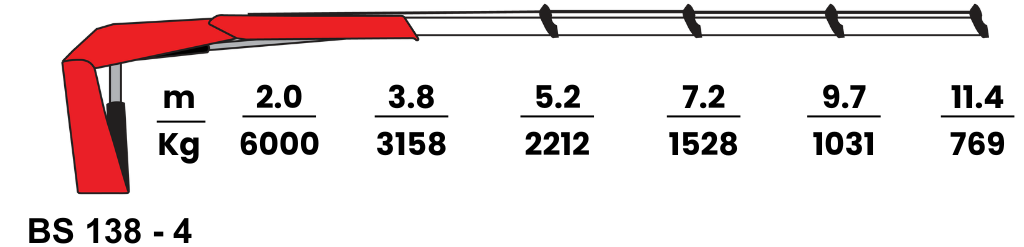

BS 138-4
|
Lifting Capacity (tm)
12.3
|
Outreach (m)
11.4
|
Slewing Angle (°)
∞
|
Stabilizer Spread (mm)
5380
|
|
Working Pressure (bar)
320
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
80
|
Crane Weight with Stabilizer (kg)
2660 ± 5%
|
