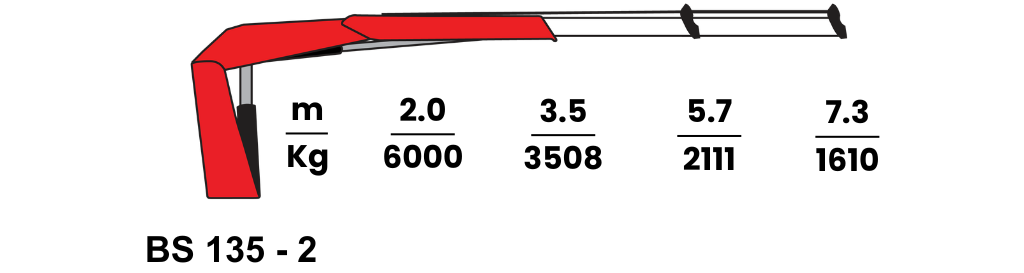

BS 135-2
|
Lifting Capacity (tm)
12.2
|
Outreach (m)
7.3
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5380
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
80
|
Crane Weight with Stabilizer (kg)
2050 ± 5%
|

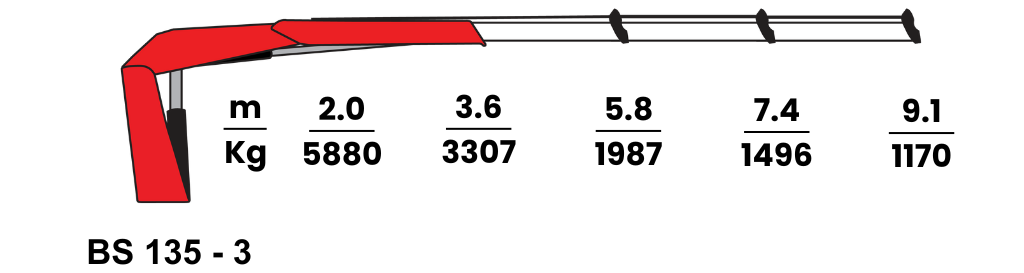

BS 135-3
|
Lifting Capacity (tm)
12
|
Outreach (m)
9.1
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5380
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
80
|
Crane Weight with Stabilizer (kg)
2150 ± 5%
|

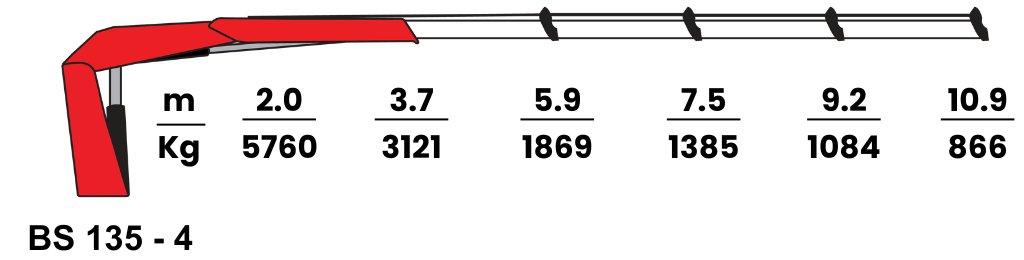

BS 135-4
|
Lifting Capacity (tm)
11.8
|
Outreach (m)
10.9
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5380
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
40~80
|
Oil Tank Capacity (L)
80
|
Crane Weight with Stabilizer (kg)
2250 ± 5%
|
