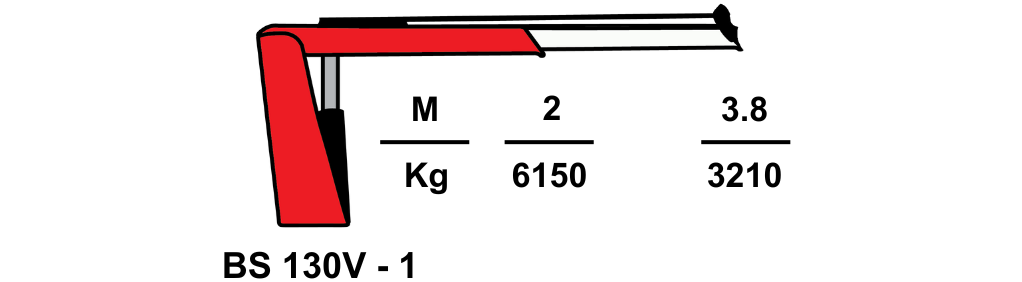

BS 130V-1
|
Lifting Capacity (tm)
12.4
|
Outreach (m)
3.8
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5050
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1200 ± 5%
|

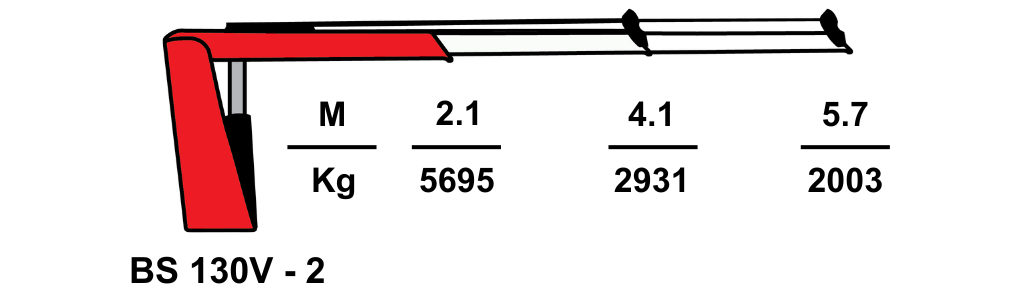

BS 130V-2
|
Lifting Capacity (tm)
12.2
|
Outreach (m)
5.7
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5050
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1300 ± 5%
|

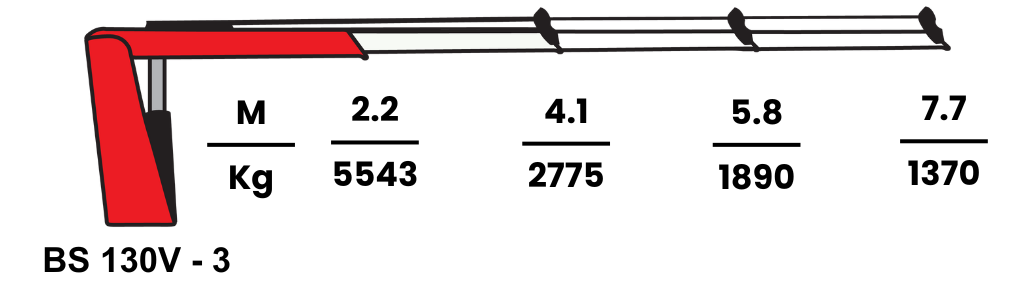

BS 130V-3
|
Lifting Capacity (tm)
12.0
|
Outreach (m)
7.7
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5050
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1400 ± 5%
|
