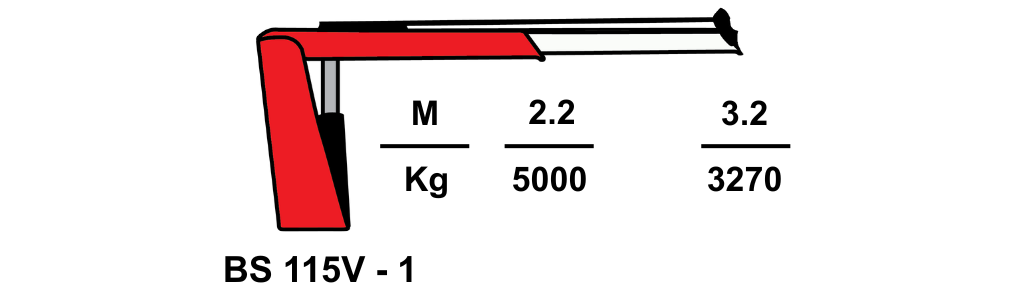

BS 115V-1
|
Lifting Capacity (tm)
11.5
|
Outreach (m)
3.2
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5100
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1160 ± 5%
|

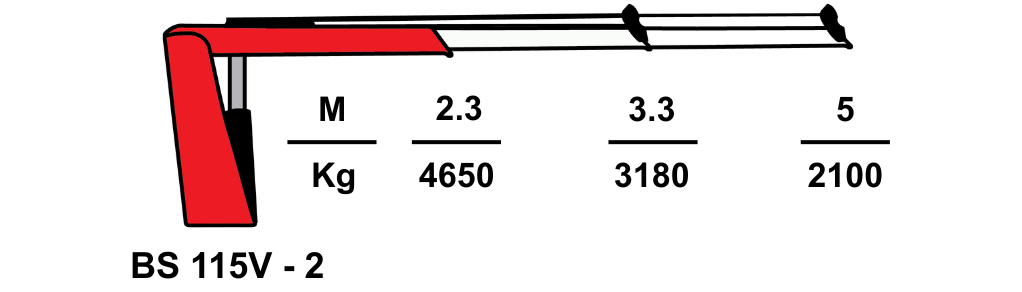

BS 115V-2
|
Lifting Capacity (tm)
11.3
|
Outreach (m)
5
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5100
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1260 ± 5%
|

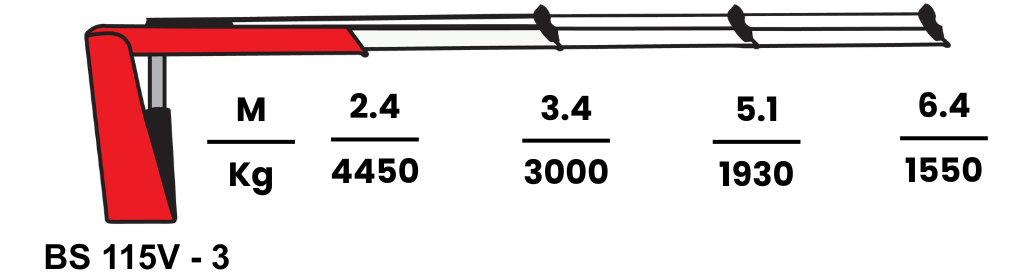

BS 115V-3
|
Lifting Capacity (tm)
11.0
|
Outreach (m)
6.4
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
5100
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1360 ± 5%
|
