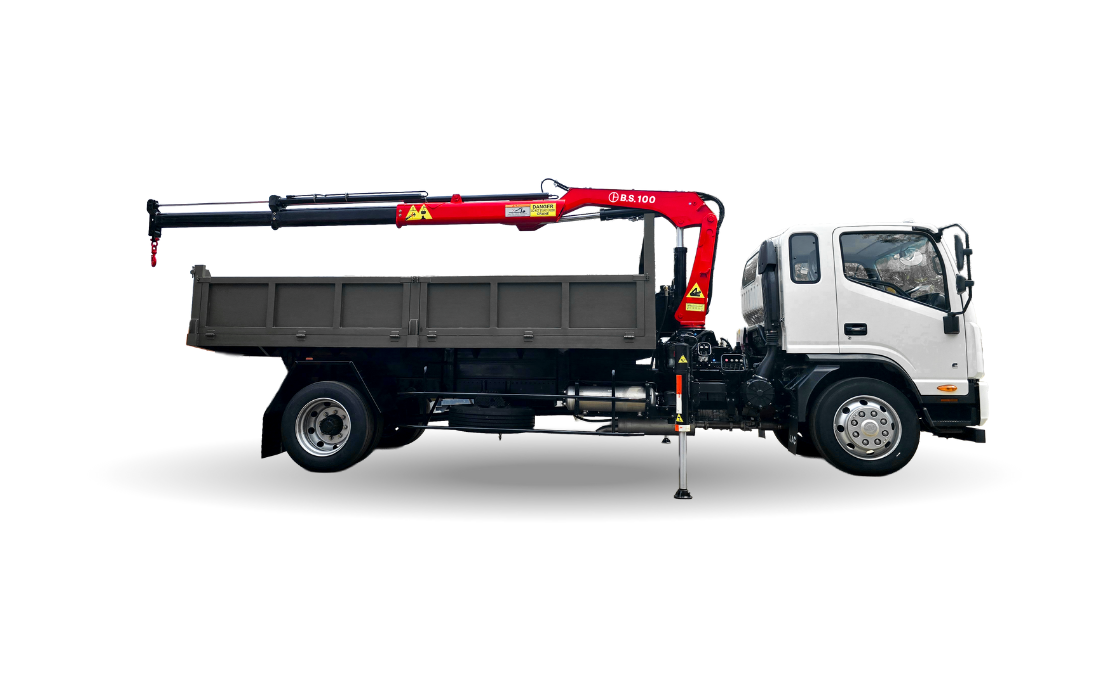

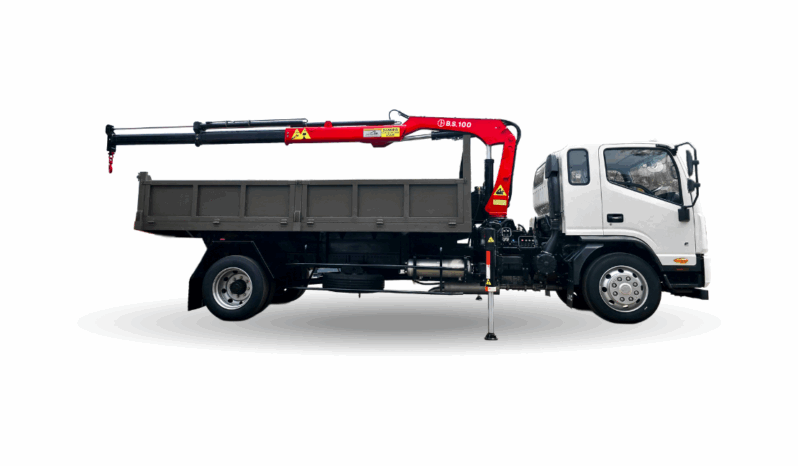

BS 100

PRODUCT GROUP	Light Duty
SERIES	Knuckle Boom Crane
MAX. LIFTING CAPACITY	9.6tm
SLEWING ANGLE	385°
STABILIZER SPREAD	4900mm

PRODUCT DESCRIPTION

Crane design compliance to European Standard EN12999
Directional Control Valve ensures precise and efficient crane operation
High Pressure Oil Filter keeps hydraulics clean for peak performance and durability
Load Limiting Valve protects against overloads for safer and more reliable lifting
Sequence Boom Extensions ensure smooth and automatic boom outreach for efficient lifting
Special built with hydraulic stabilizer for smoother operation

PRODUCT VARIANTS

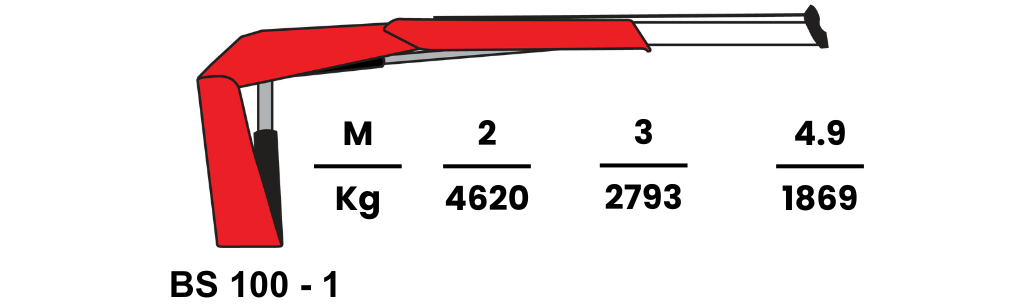

BS 100-1

Lifting Capacity (tm) 9.6	Outreach (m) 4.9	Slewing Angle (°) 385	Stabilizer Spread (mm) 4900
Working Pressure (bar) 310	Pump Capacity (cc/r) 37~60	Oil Tank Capacity (L) 70	Crane Weight with Stabilizer (kg) 1525 ± 5%

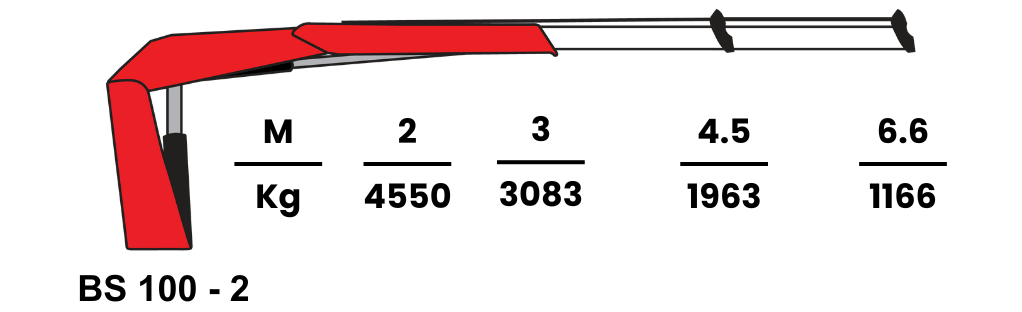

BS 100-2

Lifting Capacity (tm) 9.2	Outreach (m) 6.6	Slewing Angle (°) 385	Stabilizer Spread (mm) 4900
Working Pressure (bar) 310	Pump Capacity (cc/r) 37~60	Oil Tank Capacity (L) 70	Crane Weight with Stabilizer (kg) 1625 ± 5%

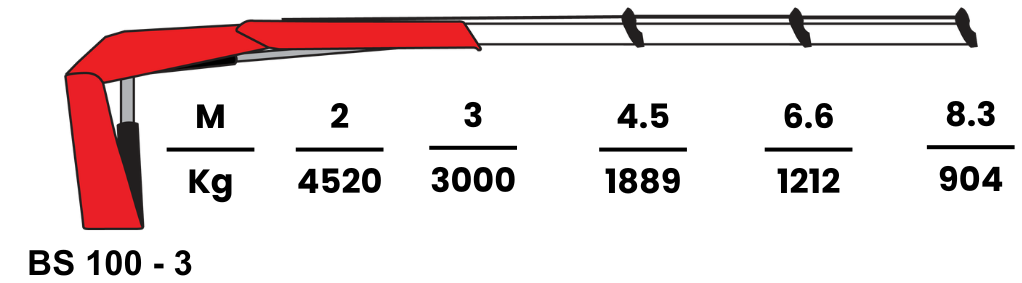

BS 100-3

Lifting Capacity (tm) 9.1	Outreach (m) 8.3	Slewing Angle (°) 385	Stabilizer Spread (mm) 4900
Working Pressure (bar) 310	Pump Capacity (cc/r) 37~60	Oil Tank Capacity (L) 70	Crane Weight with Stabilizer (kg) 1725 ± 5%
