BS 080V-1
|
Lifting Capacity (tm)
8.3
|
Outreach (m)
3.5
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
4900
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
60
|
Crane Weight with Stabilizer (kg)
1000 ± 5%
|
BS 080V-2
|
Lifting Capacity (tm)
8.2
|
Outreach (m)
5.1
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
4900
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
60
|
Crane Weight with Stabilizer (kg)
1100 ± 5%
|

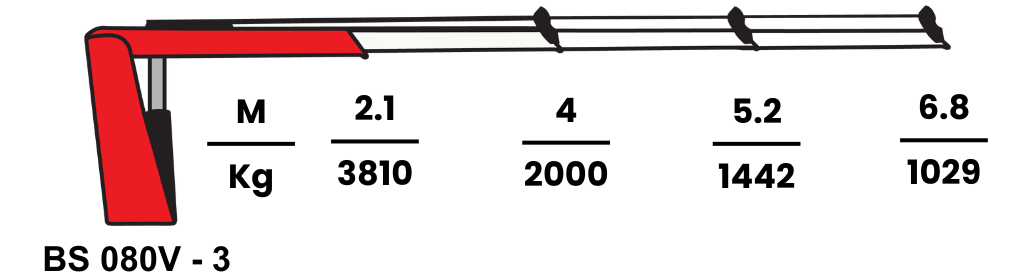

BS 080V-3
|
Lifting Capacity (tm)
8.0
|
Outreach (m)
6.8
|
Slewing Angle (°)
385
|
Stabilizer Spread (mm)
4900
|
|
Working Pressure (bar)
310
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
60
|
Crane Weight with Stabilizer (kg)
1200 ± 5%
|
