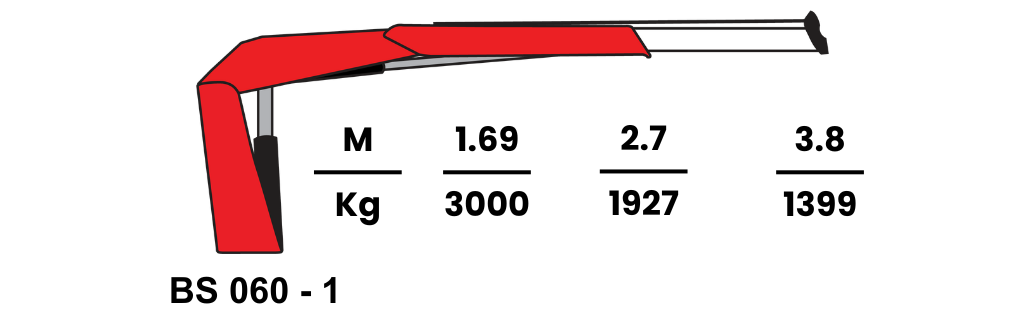

BS 060-1
|
Lifting Capacity (tm)
5.4
|
Outreach (m)
3.8
|
Slewing Angle (°)
365
|
Stabilizer Spread (mm)
4215
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
995 ± 5%
|

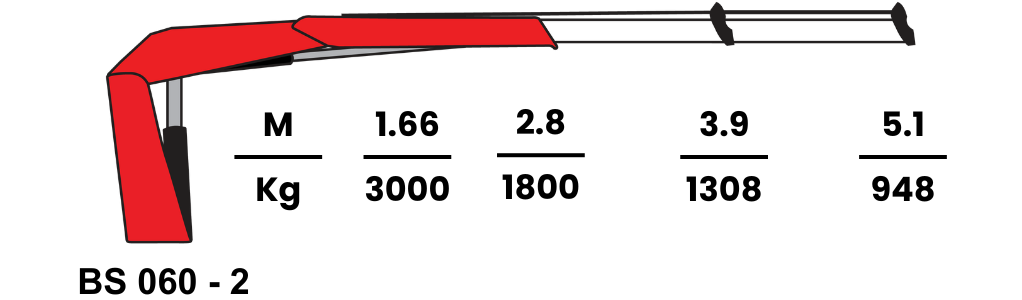

BS 060-2
|
Lifting Capacity (tm)
5.2
|
Outreach (m)
5.1
|
Slewing Angle (°)
365
|
Stabilizer Spread (mm)
4215
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1045 ± 5%
|

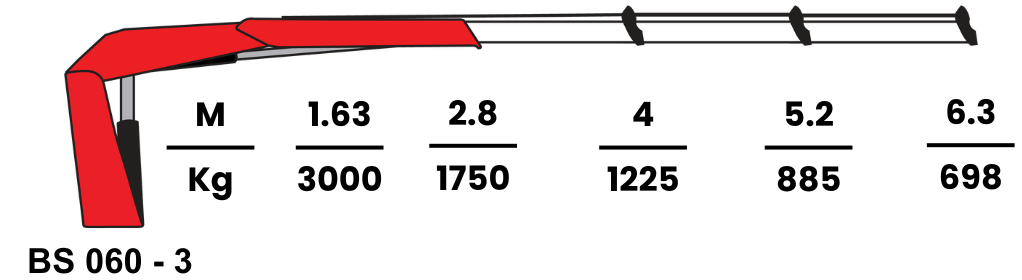

BS 060-3
|
Lifting Capacity (tm)
5.0
|
Outreach (m)
6.3
|
Slewing Angle (°)
365
|
Stabilizer Spread (mm)
4215
|
|
Working Pressure (bar)
300
|
Pump Capacity (cc/r)
37~60
|
Oil Tank Capacity (L)
70
|
Crane Weight with Stabilizer (kg)
1100 ± 5%
|
